Electrical Localization Capabilities using QFI Infrascope

QFI Instrument Services and electrical localization services from EAG Laboratories are upgraded with LSM and XIVA image.

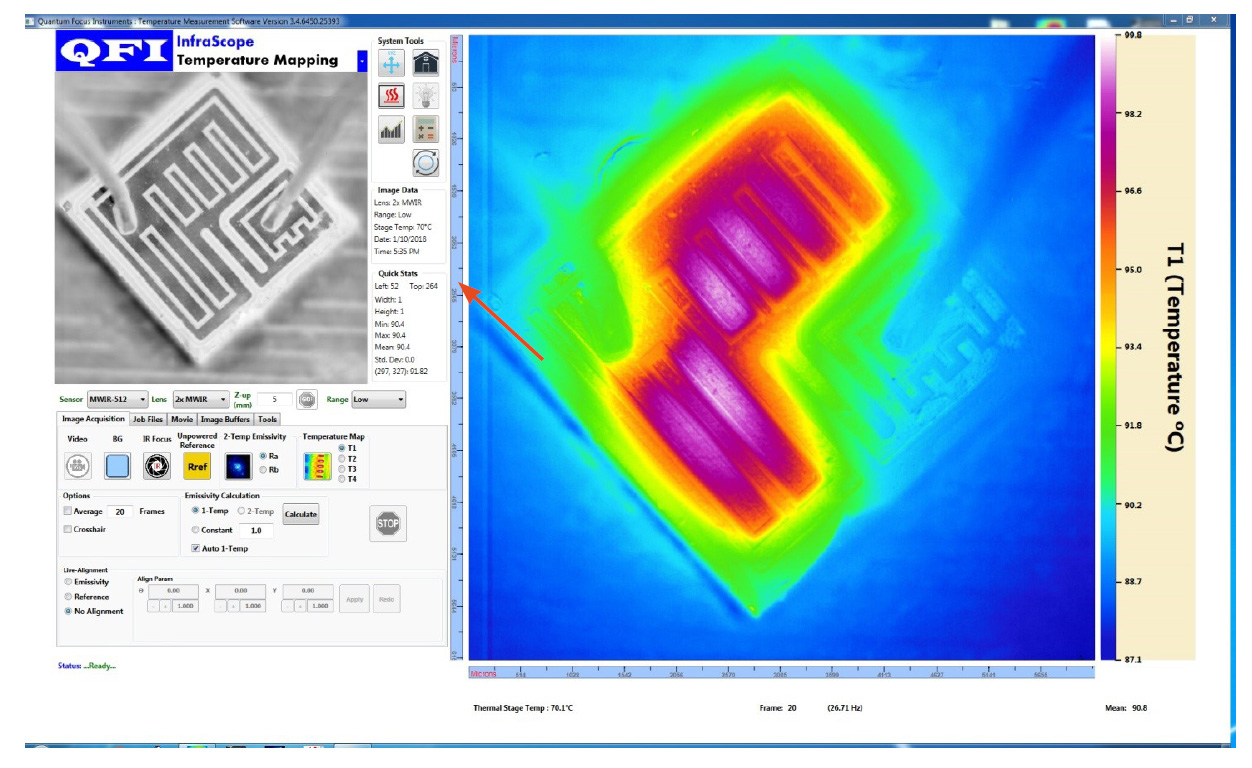

The QFI InfraScope is a Temperature Mapping Microscope that provides  reliability and thermal data.

The system has automated emissivity correction to produce a true temperature map with high temperature and spatial resolution. It has been used to check die and solder attachments on materials such as silicon, germanium, sapphire and zinc selenide.

Below are some examples of the data obtained

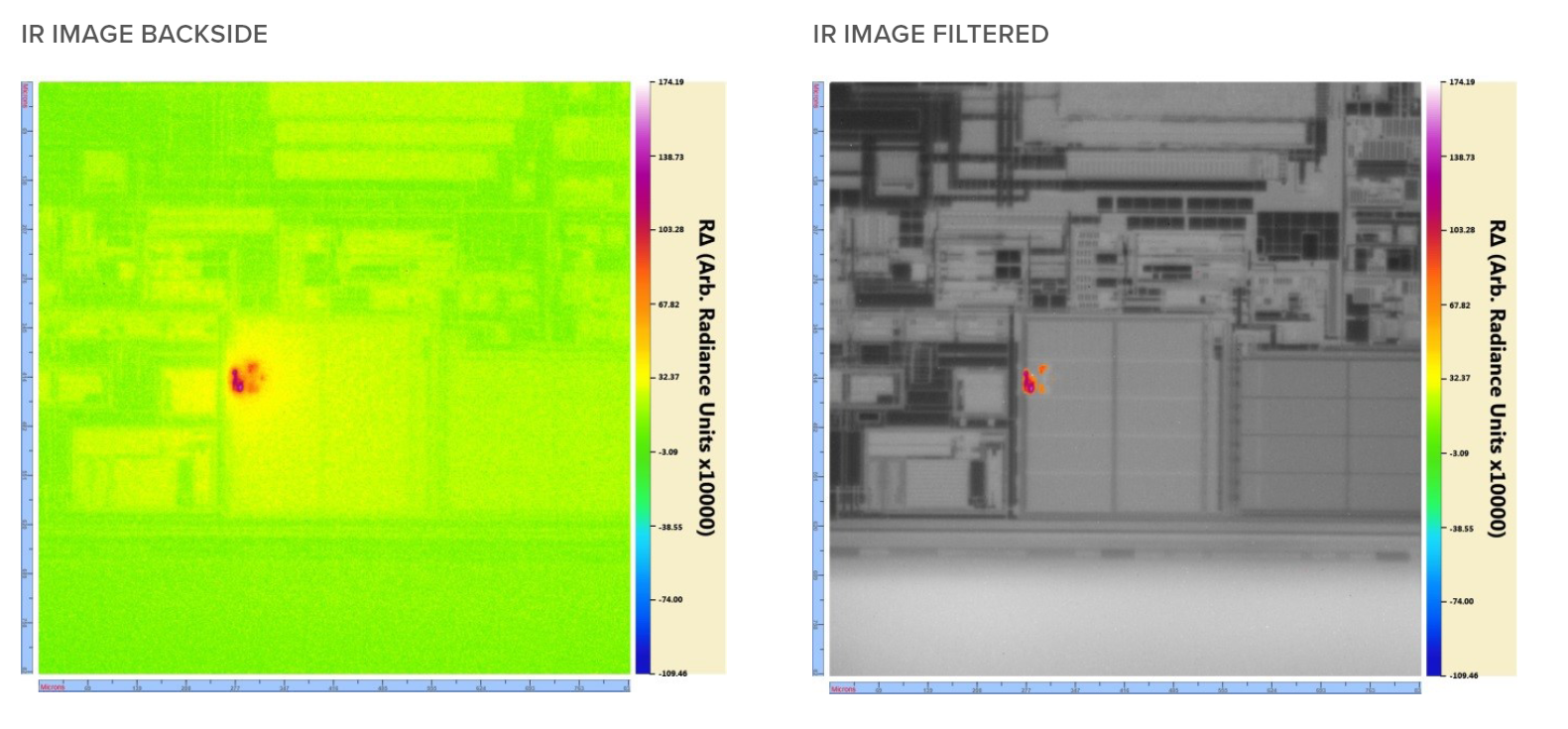

IR image backside and IR image filtered

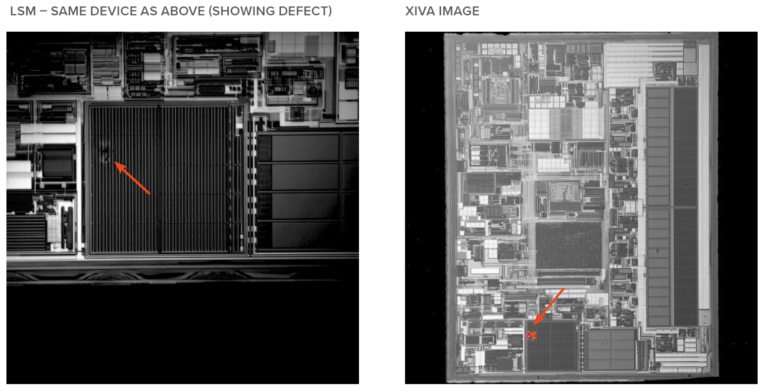

LSM - Same Device as above (showing defect) and XIVA Image

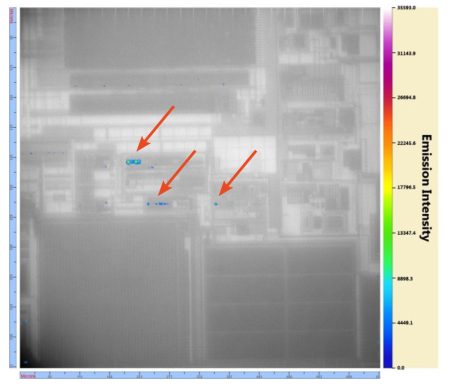

EMMI SPOT AT 20X
EMMI SPOT AT 20X
